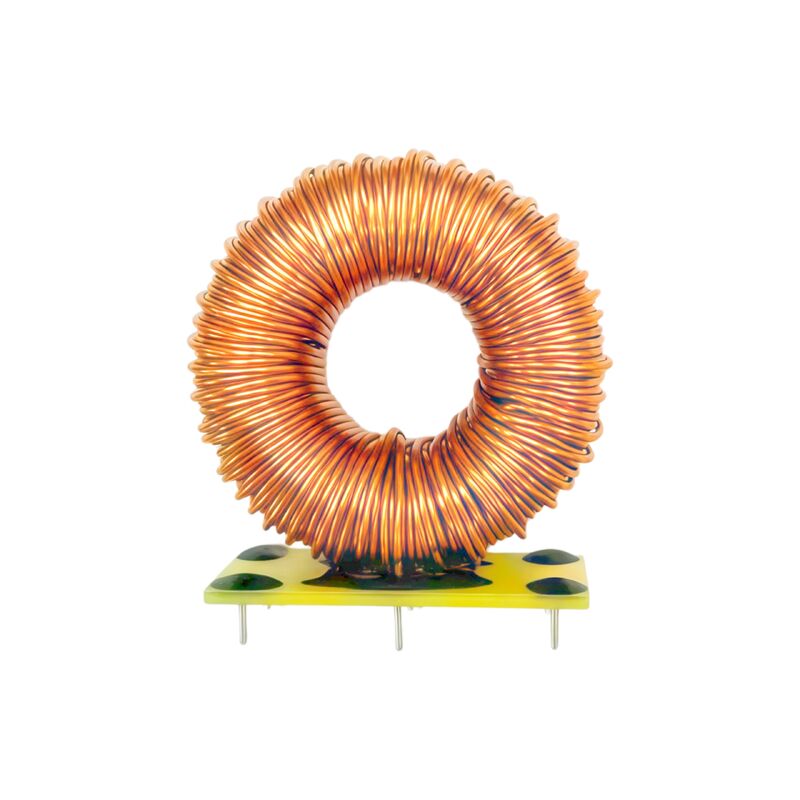

T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation

Merknaam: ZXY
Modelnummer: ZXY-T157040
MOQ: Bespreekbaar
Prijs: Onderhandelbaar
Verpakking: KARTON
Detailinformatie
Productbeschrijving
Detailinformatie
Plaats van herkomst:
Shenzhen Guangdong
Certificering:
RoHS、ISO9001、CE
Markeren:

High-current Capability Magnetic Loop Inductor

,

Iron Silicon Aluminum Ferrite Core Inductor

,

Soft Saturation Magnetic Loop Inductor

Productbeschrijving
T157040 Magnetic Loop Inductor
Composite magnetic core inductor designed for high power density applications with exceptional high-current tolerance. Features innovative combination of iron silicon aluminum and ferrite materials for superior performance.
Product Overview
The T157040 magnetic core inductor combines iron silicon aluminum and ferrite materials, delivering magnetic flux density twice as high as traditional ferrites. This enables greater energy storage in the same volume, making it ideal for high-current applications ranging from a few amperes to hundreds of amperes.
Key Advantages
  • Soft Saturation: Gradual inductance decrease under current surges prevents circuit instability
  • Zero Magnetostriction: Eliminates audible noise in high-power switching applications
  • High Energy Storage: Twice the magnetic flux density of standard ferrites
  • Thermal Stability: Consistent performance across wide temperature ranges
Application Areas
Power Conversion & Correction:
  • PFC (Power Factor Correction) inductors
  • Output energy storage filter inductors
  • LLC resonant converters
  • DC-DC converters and high-current chokes
New Energy & Industrial:
  • Solar inverters and photovoltaic systems
  • Energy storage systems
  • Wind energy conversion equipment
  • UPS uninterruptible power supplies
Electromagnetic Compatibility:
  • High-current common mode inductors
  • Line filters and noise suppression
  • AC inductors and output inductors
High-Performance Computing & Automotive:
  • AI server power supplies (300-1200W)
  • GPU/CPU front-end power supply
  • Electric vehicle DC-DC converters
  • ADAS systems and hybrid vehicle applications
Performance Characteristics
Feature Category Performance Characteristic Technical Details / Benefit
Core Material Hybrid Structure Combines Iron Silicon Aluminum (Sendust) with Ferrite (MnZn/NiZn)
Current Handling High DC Bias Capability Gradual inductance decline under high current loads prevents circuit shock
Saturation Characteristics High Saturation Flux Density 1.0 to 1.05 T (approximately twice standard ferrite cores)
Frequency Response Wide Frequency Range Optimized for 50Hz to 2MHz applications
Core Loss Low Temperature Rise Lower core losses compared to traditional Iron Powder cores
Magnetostriction Near-Zero Audible Noise Eliminates "coil whine" in high-frequency applications
Thermal Stability Stable Over Temperature Consistent performance in demanding environments
Reliability No Thermal Runaway Graceful performance degradation enhances circuit safety

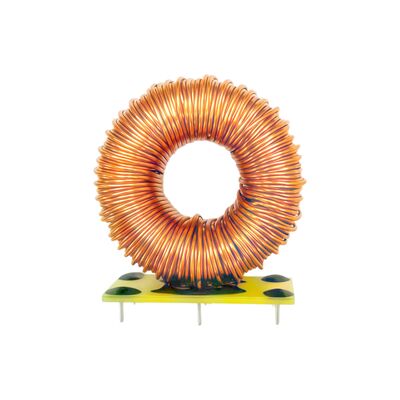

Product Images
T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 0 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 1 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 2 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 3 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 4 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 5 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 6
Recommended Products
T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 7 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 8
Company Profile
T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 9 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 10 T157040 Magnetic Loop Inductor with Iron Silicon Aluminum Ferrite Core for High-current Capability and Soft Saturation 11
Taggen:
