EE1811-4V 5A Nickel Steel High Frequency Transformer with Nickel-Zinc Ferrite Core for 4V DC LED Lighting

Merknaam: ZXY
Modelnummer: EE1811
MOQ: Bespreekbaar
Prijs: Onderhandelbaar
Verpakking: karton
Detailinformatie
Productbeschrijving
Detailinformatie
Plaats van herkomst:
Shenzhen Guangdong
Certificering:
RoHS、ISO9001、CE
Levering vermogen:
Bespreekbaar
Markeren:

5A Output Current High Frequency Transformer

,

4V DC Output Nickel Steel Transformer

,

Nickel-Zinc Ferrite Core LED Lighting Transformer

Productbeschrijving
EE1811-4V 5A Nickel Steel High Frequency Transformer for Household LED Lights
The EE1811-4V 5A high-frequency nickel steel transformer is a core power conversion component specifically engineered for household LED lighting systems. Utilizing a high-frequency nickel steel alloy magnetic core with exceptional magnetic permeability, minimal core loss, and superior temperature stability, this transformer significantly enhances electrical energy conversion efficiency.
Key Functions
Energy Conversion and Voltage Adaptation
This transformer converts high-frequency, high-voltage electrical signals from LED driver front-end circuits into a precisely regulated 4V DC, 5A output through electromagnetic induction. This optimal voltage-current combination perfectly matches LED electrical characteristics, ensuring consistent illumination and reliable performance.
Electrical Isolation and Safety Assurance
Energy transfer occurs through magnetic coupling rather than direct electrical connection, establishing a critical isolation barrier between input (primary) and output (secondary) circuits. This safety feature prevents hazardous mains voltage from reaching the low-voltage LED components, ensuring user safety and compliance with household appliance regulations.
Energy Transfer and Power Drive
As the central power transmission component, this transformer efficiently delivers 20W of electrical power. The nickel-zinc ferrite core is specifically optimized for high-frequency operation, enabling continuous, stable power delivery to LED loads with minimal energy loss, ensuring maximum brightness and luminous efficiency.
Performance Characteristics
Performance Characteristic Description
Core Material & Frequency Nickel-Zinc (Ni-Zn) Ferrite Core. Specifically optimized for high-efficiency operation at high switching frequencies (typically kHz to several hundred kHz range), minimizing core losses.
Electrical Parameters Output: 4V DC, 5A (20W). Input: Compatible with common LED driver IC topologies (e.g., flyback). Designed for precise matching with high-power LED strings.
Efficiency & Thermal Performance High conversion efficiency due to low-loss core. Excellent thermal stability with minimal self-heating, ensuring long-term reliability and contributing to overall LED luminaire energy savings.
Design & Reliability Compact EE18 form factor for easy integration. Features robust construction with high-grade insulation materials, providing strong resistance to electromagnetic interference (EMI) and high operational reliability.
Safety & Application Designed to meet relevant safety standards (UL, CE) for household applications. Provides sufficient insulation and creepage distances for safe operation in home lighting environments.
Product Images

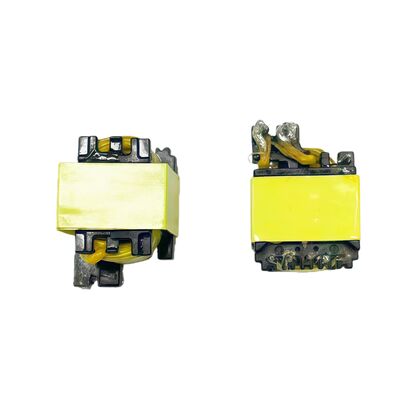

EE1811-4V 5A Nickel Steel High Frequency Transformer with Nickel-Zinc Ferrite Core for 4V DC LED Lighting 0

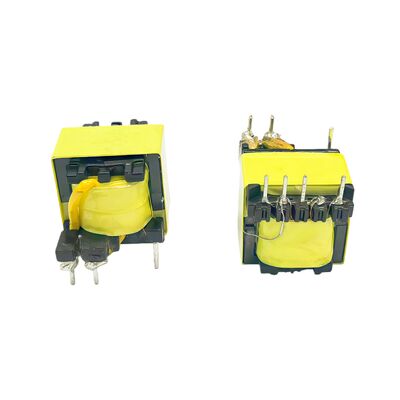

EE1811-4V 5A Nickel Steel High Frequency Transformer with Nickel-Zinc Ferrite Core for 4V DC LED Lighting 1

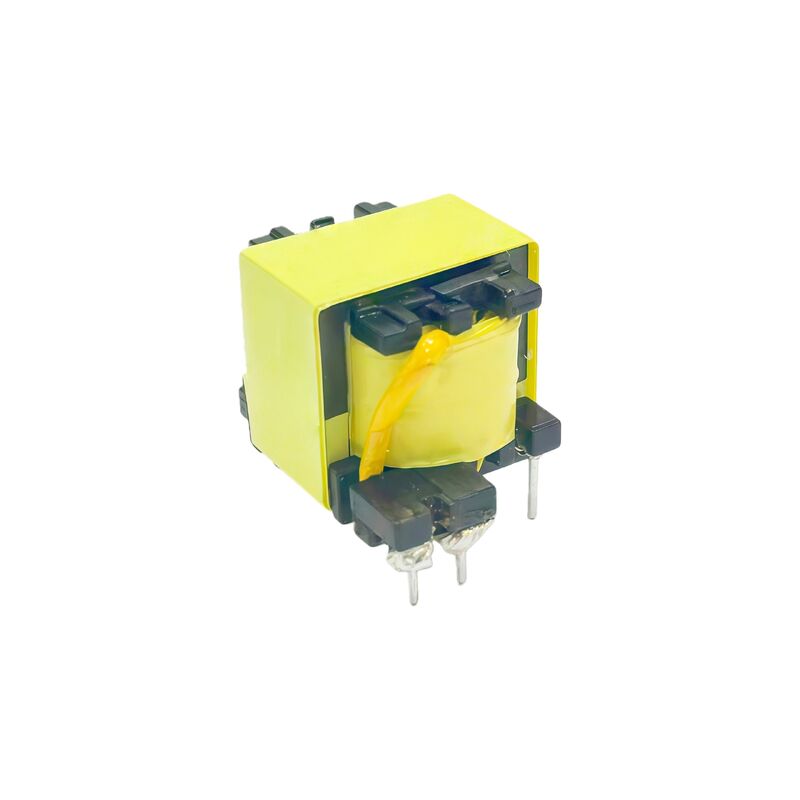

EE1811-4V 5A Nickel Steel High Frequency Transformer with Nickel-Zinc Ferrite Core for 4V DC LED Lighting 2
EE1811-4V 5A Nickel Steel High Frequency Transformer with Nickel-Zinc Ferrite Core for 4V DC LED Lighting 3
EE1811-4V 5A Nickel Steel High Frequency Transformer with Nickel-Zinc Ferrite Core for 4V DC LED Lighting 4
